UV Curing Tester UV CURE CHECK
Key Facts
- Reduce Set-Up Time: Analysis directly at the press Energy Savings: Optimise UV lamp settings Precise Measured Value Output: Degree of hardening as a percentage of the reference value
- Measurement uncertainty: Reproducibility of individual measurements < ± 10% Measurement time: Approx. 5 s
- Display: 2-line display, 15 x 52 mm Device dimensions: 350 x 105 x 90 mm
Categories
Photogravure printing Offset printing Flexographic printing
Product information
Smart Smear Test for Determining UV Curing Degree
Measuring Device for Testing the Curing Degree of UV Printing Inks and Varnishes
UV inks are cured by being exposed to UV light, whereby their molecules polymerize and a solid ink film forms on the substrate. Uncured UV inks and coatings have a sensitizing and allergenic effect and therefore require specific hazard identification. Only products with cured UV inks and coatings may be distributed. To ensure complete curing, the inks, equipment and processes used must be carefully adapted to each other.

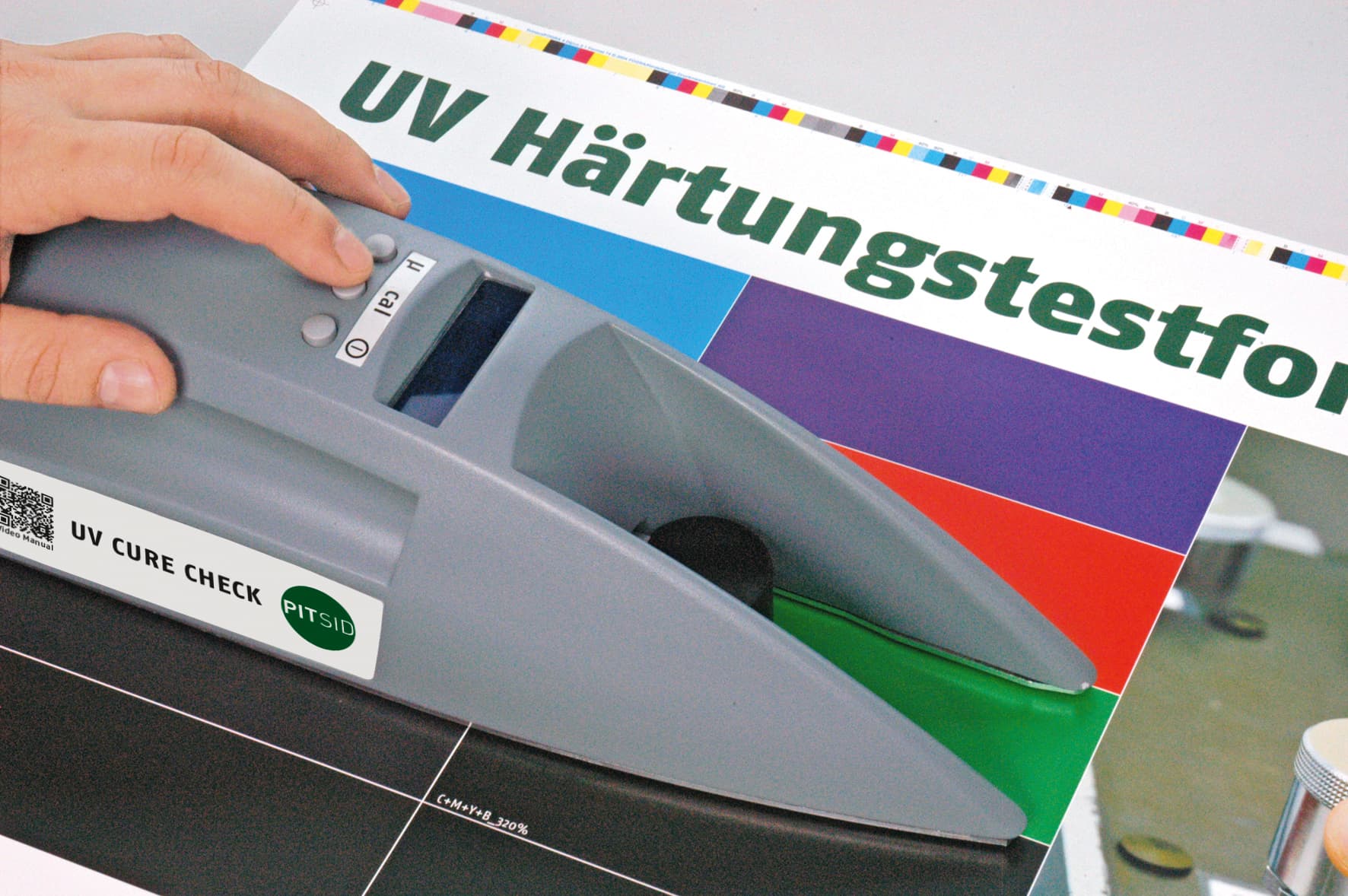

Using an indirect measurement method, UV CURE CHECK determines the curing degree of the applied UV and hybrid inks or UV coatings very quickly. These measurements provide the ba ...Download
Watch our product video
UV Curing Tester UV CURE CHECK Video
